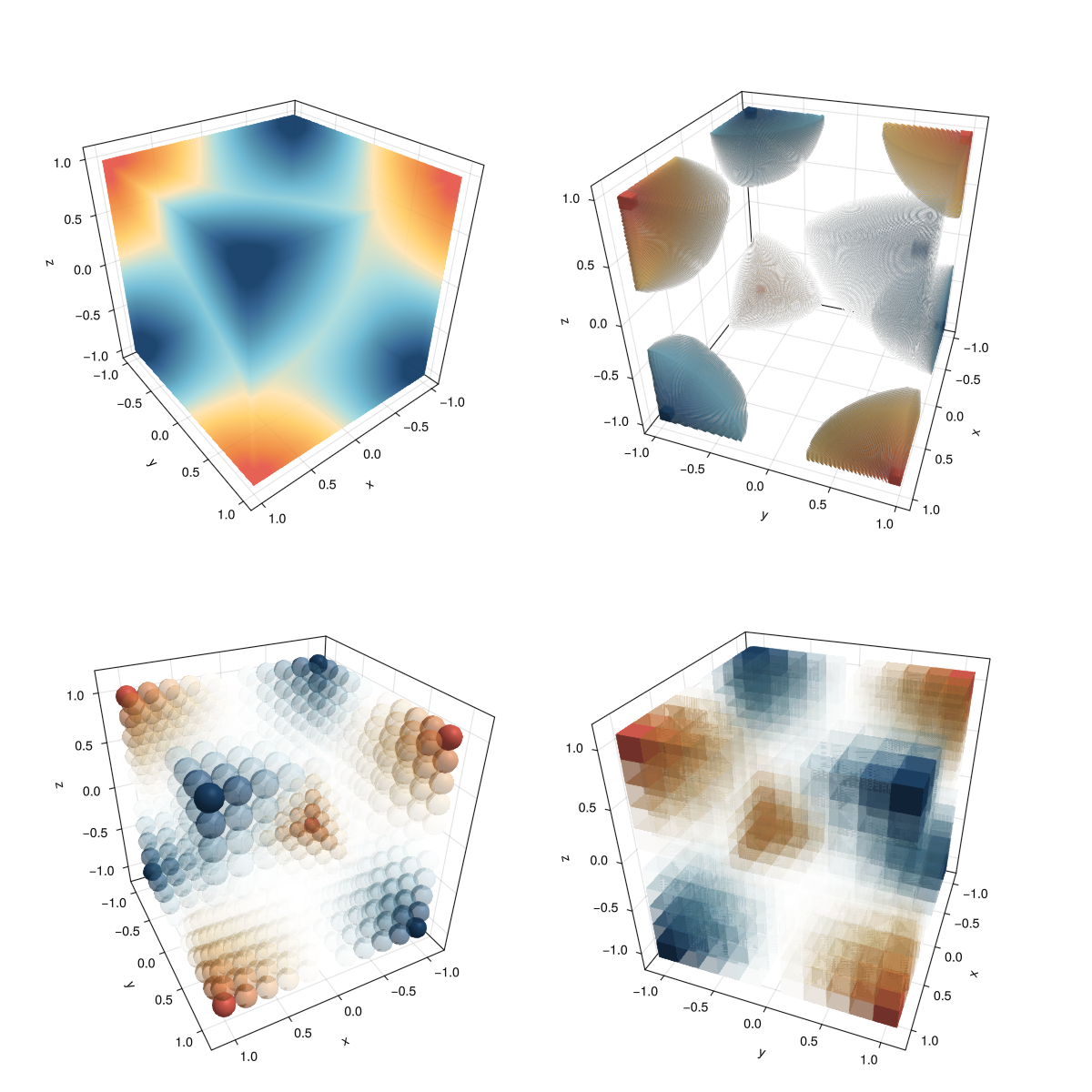

volume, contour and scatters
julia
using GLMakie, ColorSchemes
using GeometryBasics: Rect3f
GLMakie.closeall() # close any open screen
x = y = z = -1:0.2:1
vol1 = [ix * iy * iz for ix in x, iy in y, iz in z]
points3d = [Point3f(ix, iy, iz) for ix in x, iy in y, iz in z];
# scale everything to the interval 0,1 (things don't seem to work with colorrange)
vol2 = (vol1 .+ 1) ./ 2;
# colormap with transparency in the middle
cmap = :Hiroshige
n = 101
g(x) = x^2
alphas = [g(x) for x in range(-1, 1, length = n)]
cmap_alpha = resample_cmap(cmap, n; alpha = alphas)
# the plot
fig = Figure(size = (1200, 1200))
ax1 = Axis3(fig[1, 1], perspectiveness = 0.5, azimuth = 7.19,
elevation = 0.57, aspect = (1, 1, 1))
ax2 = Axis3(fig[1, 2], perspectiveness = 0.5, azimuth = 6.62,
elevation = 0.57, aspect = (1, 1, 1))
ax3 = Axis3(fig[2, 1], perspectiveness = 0.5, azimuth = 7.38,
elevation = 0.57, aspect = (1, 1, 1))
ax4 = Axis3(fig[2, 2], perspectiveness = 0.5, azimuth = 6.64,
elevation = 0.57, aspect = (1, 1, 1))
volume!(ax1, x, y, z, vol2; colormap = cmap, transparency = true)
contour!(ax2, x, y, z, vol1; colormap = cmap, alpha = 0.05,
levels = [collect(-1:0.01:-0.3)..., collect(0.3:0.01:1)...])
meshscatter!(ax3, vec(points3d); color = vec(vol1), colormap = cmap_alpha)
meshscatter!(ax4, vec(points3d); color = vec(vol1), colormap = cmap_alpha,
marker = Rect3f(Vec3f(-1), Vec3f(2)))
limits!(ax4, -1.2, 1.2, -1.2, 1.2, -1.2, 1.2)
fig┌ Warning: Encountered an `AbstractVector` with value -1.0:0.2:1.0 on side x in `convert_arguments` for the `ImageLike` trait.
│ Using an `AbstractVector` to specify one dimension of an `ImageLike` is deprecated because `ImageLike` sides always need exactly two values, start and stop.
│ Use interval notation `start .. stop` or a two-element tuple `(start, stop)` instead.
└ @ Makie ~/.julia/packages/Makie/8h0bl/src/conversions.jl:413
┌ Warning: Encountered an `AbstractVector` with value -1.0:0.2:1.0 on side y in `convert_arguments` for the `ImageLike` trait.
│ Using an `AbstractVector` to specify one dimension of an `ImageLike` is deprecated because `ImageLike` sides always need exactly two values, start and stop.
│ Use interval notation `start .. stop` or a two-element tuple `(start, stop)` instead.
└ @ Makie ~/.julia/packages/Makie/8h0bl/src/conversions.jl:413
┌ Warning: Encountered an `AbstractVector` with value -1.0:0.2:1.0 on side z in `convert_arguments` for the `ImageLike` trait.
│ Using an `AbstractVector` to specify one dimension of an `ImageLike` is deprecated because `ImageLike` sides always need exactly two values, start and stop.
│ Use interval notation `start .. stop` or a two-element tuple `(start, stop)` instead.
└ @ Makie ~/.julia/packages/Makie/8h0bl/src/conversions.jl:413
┌ Warning: Encountered an `AbstractVector` with value -1.0:0.2:1.0 on side x in `convert_arguments` for the `ImageLike` trait.
│ Using an `AbstractVector` to specify one dimension of an `ImageLike` is deprecated because `ImageLike` sides always need exactly two values, start and stop.
│ Use interval notation `start .. stop` or a two-element tuple `(start, stop)` instead.
└ @ Makie ~/.julia/packages/Makie/8h0bl/src/conversions.jl:413
┌ Warning: Encountered an `AbstractVector` with value -1.0:0.2:1.0 on side y in `convert_arguments` for the `ImageLike` trait.
│ Using an `AbstractVector` to specify one dimension of an `ImageLike` is deprecated because `ImageLike` sides always need exactly two values, start and stop.
│ Use interval notation `start .. stop` or a two-element tuple `(start, stop)` instead.
└ @ Makie ~/.julia/packages/Makie/8h0bl/src/conversions.jl:413
┌ Warning: Encountered an `AbstractVector` with value -1.0:0.2:1.0 on side z in `convert_arguments` for the `ImageLike` trait.
│ Using an `AbstractVector` to specify one dimension of an `ImageLike` is deprecated because `ImageLike` sides always need exactly two values, start and stop.
│ Use interval notation `start .. stop` or a two-element tuple `(start, stop)` instead.
└ @ Makie ~/.julia/packages/Makie/8h0bl/src/conversions.jl:413
